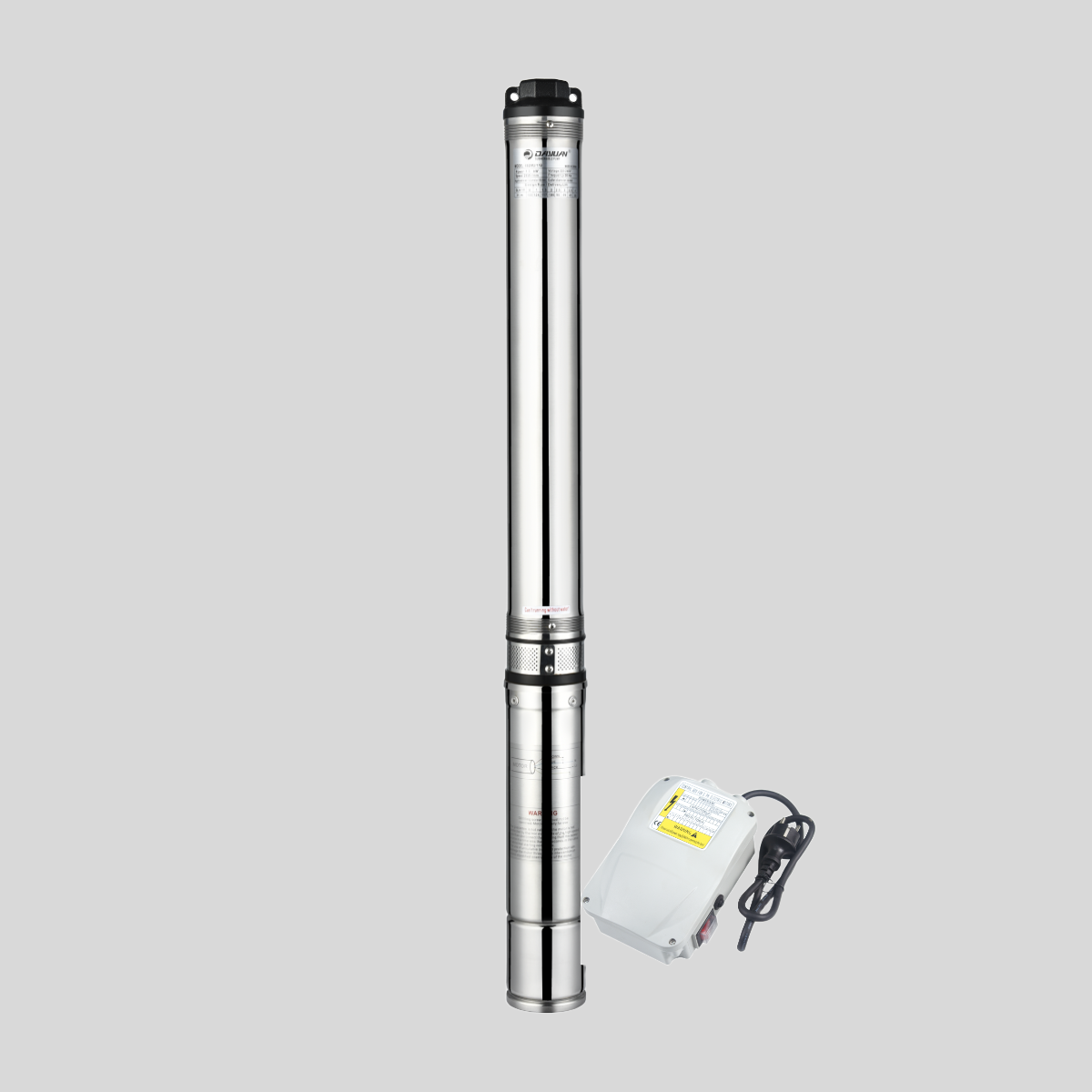

DM DEEP WELL PUMP 4Dm2/ 4Dm3

Motor and Pump:

Rewindable oil-filled motor

NEMA dimension standards

Three-phase: 380-415V / 50Hz

Single-phase: 220-240V / 50Hz

Pumps are designed by sasing stressed

Optional euipped with control box

Protection Class : IP68

Insulation class : B

Operating Limits:

Max. fluid Temperature: +40°C

Max.sand content: 0.25% :

Max. immersion: 100m

Min. well diameter:  4"

Applications:

Transfer water from deep well reservoirs

Domestic water supply and irrigation

Garden and agriculture irrigation
