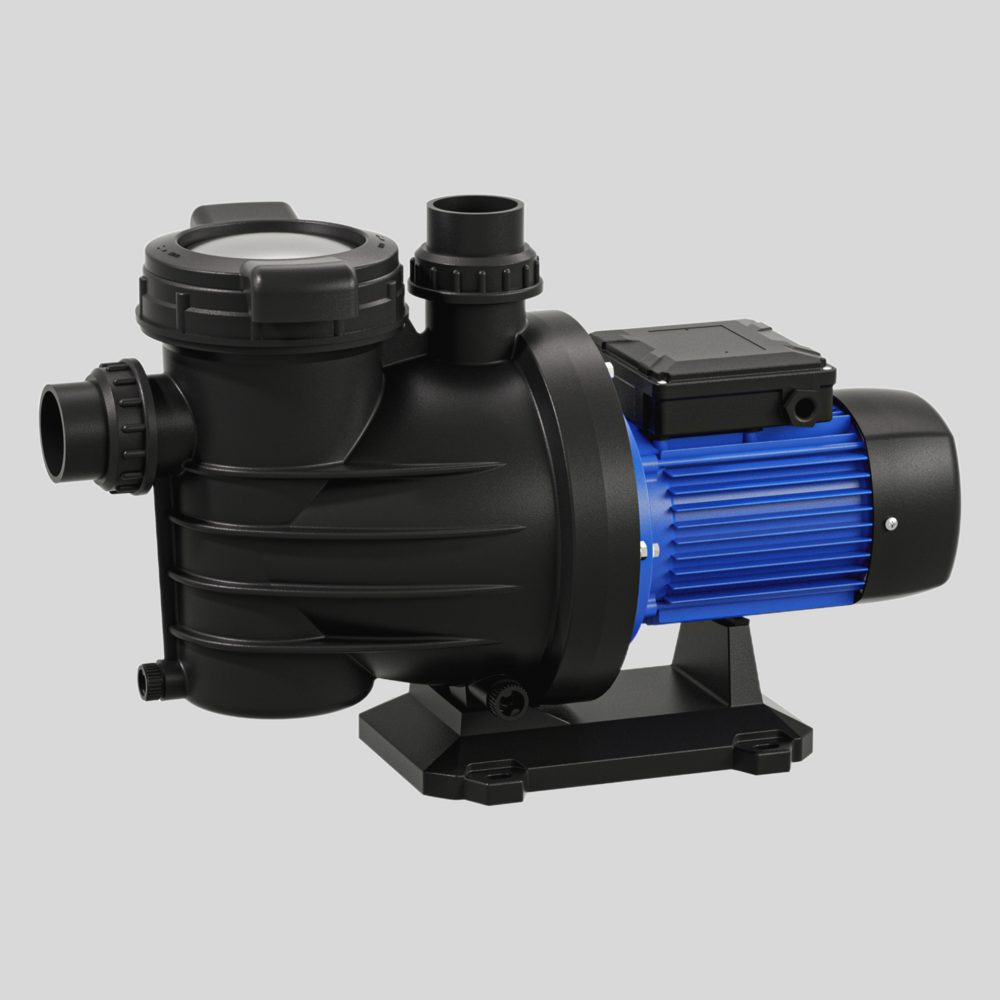

DAYUAN DSWm Swimming Pool Pump

Pump Specifications

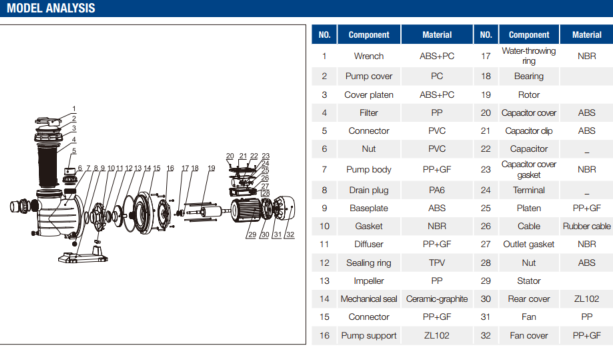

Material Construction:

All Copper-Winding Motor – High-efficiency, durable performance with superior conductivity.

Docking Rotor – Precision-engineered for smooth operation and reliable alignment.

All Plastic Wetted Parts – Corrosion-resistant design for longevity in wet conditions.

Max Suction Head: +3m – Strong suction capability for efficient fluid handling.

Motor Specifications

High-Efficiency Design:

Ambient Temperature: +5°C - 50°C

Liquid Temperature: +4°C - 50°C

Liquid PH: 6.5 - 8.5

Max. particle diameter: 0.2mm

Power: 230V/50Hz (optional for 60 Hz)

The voltage fluctuation rage is +-10% of the rated voltage



Applications

Circulation & Filtration for small swimming pools

Water Filtration in marine aquaculture and lightly contaminated water with suspended solids

Water Circulation & Decorative Fountains for urban amusement attractions

Heat Pump Support for water circulation in air source heat pump units
