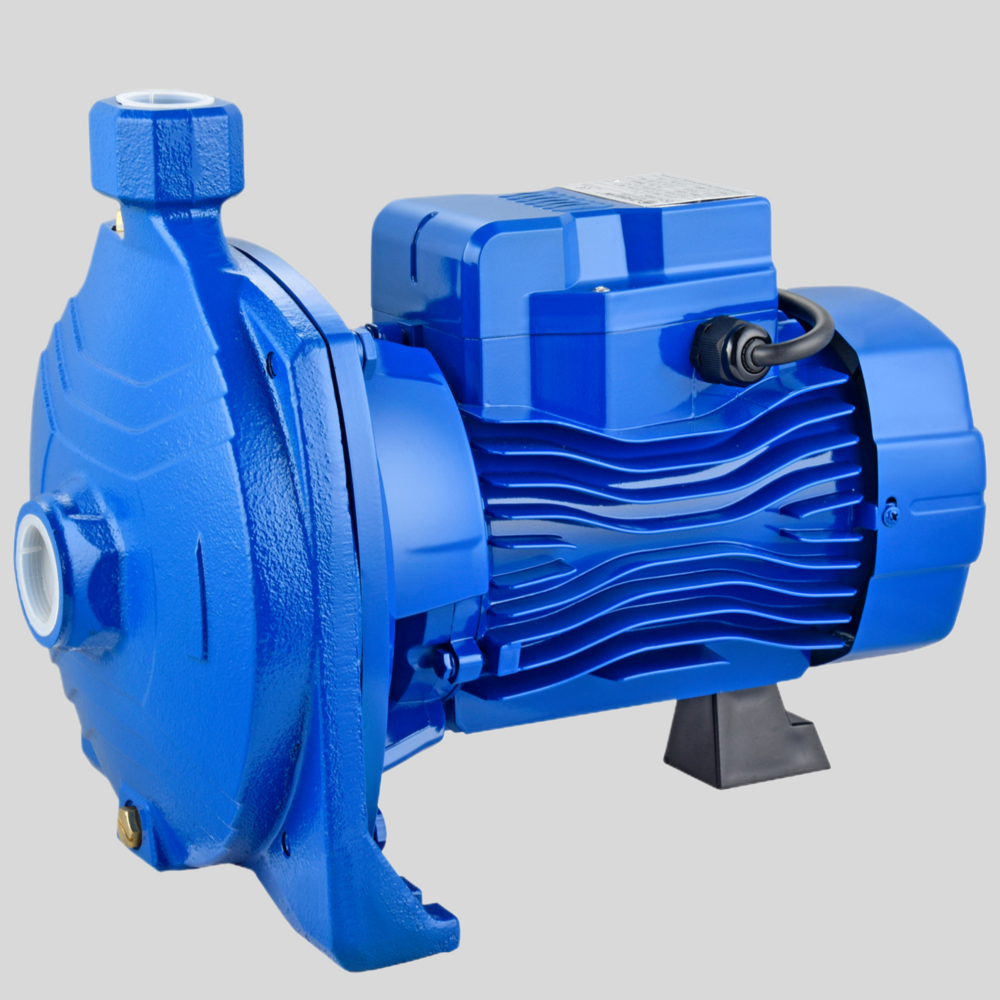

DAYUAN DCm-C Centrifugal Pump from 0.37-2.2Kw/ Max. flow 9m³/h, Max. head 45m, Price from

Pump Specifications

Material Construction:

Body: Cast iron (durable and corrosion-resistant)

Impeller: Brass/stainless steel (high efficiency and corrosion resistance)

Shaft: AISI 304 stainless steel (reliable and long-lasting)

Operating Conditions:

Max. Liquid Temperature: +60°C

Suitable Liquids: Clean water and other liquids with similar physical/chemical properties

Motor Specifications

High-Efficiency Design:

Copper windings (optimal conductivity and performance)

Thermal Protection: Built-in protector for single-phase motors (prevents overheating)

Robust Protection & Durability:

Insulation Class: F (suitable for high-temperature operation)

Protection Class: IPX4 (splash-resistant)

Max. Ambient Temperature: +40°C

Applications

Water Supply & Irrigation: Rural water supply, garden irrigation

HVAC & Circulation: Pressure boosting for cold/hot water systems

Long-Distance Transfer: Water transfer pipelines and supporting equipment

General Use: Transfer of clean water or similar liquids
