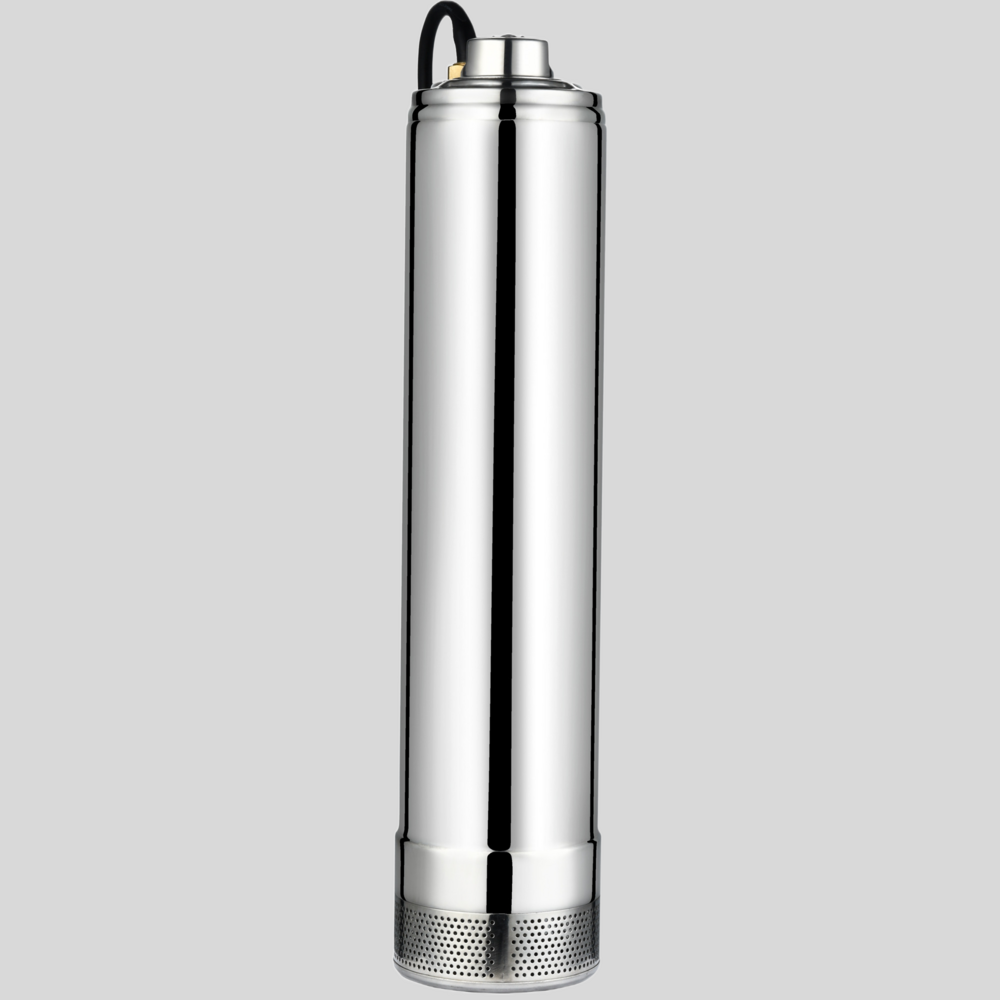

DS 4DS(230V/50Hz) SINGLE PHASE DEEP WELL PUMP

Motor and Pump:

Rewindable dry-type motor

One-piece compact pump housing

Non-return valve design

Double mechanical sealing and oil chamber

High-level corrosion -resistance stainless steel

Auto-start/stop and multi-protection for automatic type

Protection Class : IP68

Insulation class : B

Operating Limits:

Max. fluid Temperature: +40°C

Max.sand content: 0.15% :

Max. immersion: 100m

Min. well diameter:  4"

Applications:

Transfer clean water from deep well reservoirs

Domestic water supply and irrigation

Garden and agriculture irrigation
