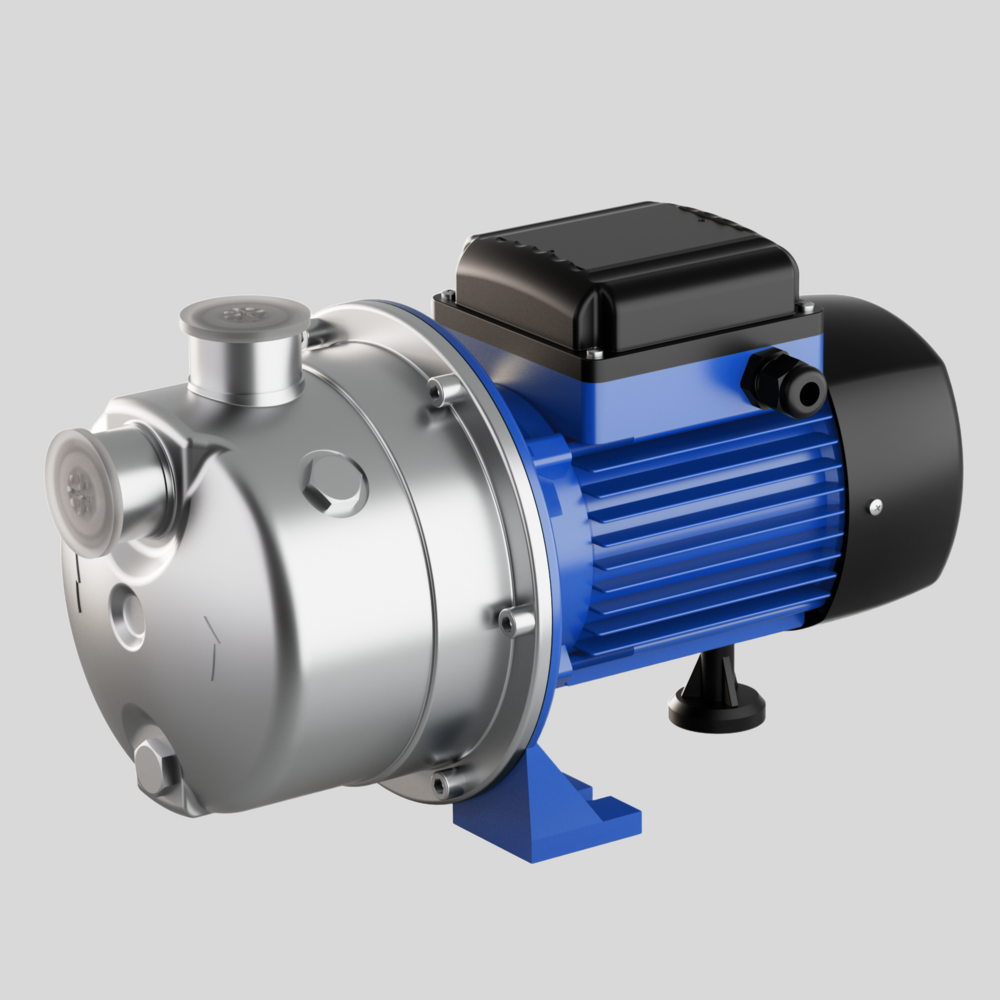

DAYUAN JET-SDm Stainless Steel Jet Pump

Pump Specifications

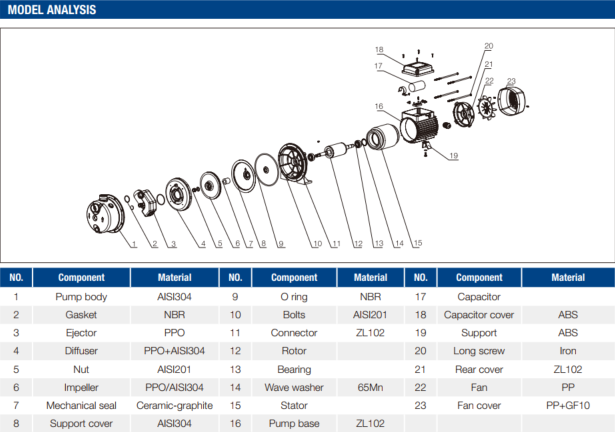

Material Construction:

Body: Stainless Steel (durable and corrosion-resistant)

Impeller: PPO /stainless steel (high efficiency and corrosion resistance)

Shaft: AISI 304 stainless steel + Steel45# (reliable and long-lasting)

Operating Conditions:

Max. Liquid Temperature: +60°C

Max. suction: +10m

Suitable Liquids: Clean water and other liquids with similar physical/chemical properties

Motor Specifications

High-Efficiency Design:

Copper windings (optimal conductivity and performance)

Thermal Protection: Built-in protector for single-phase motors (prevents overheating)

Robust Protection & Durability:

Insulation Class: F (suitable for high-temperature operation)

Protection Class: IPX4 (splash-resistant)

Max. Ambient Temperature: +40°C



Applications

Transfer clean water or other liquids similar I physical and chemical properties

Borehole water lifting and garden irrigation

Residential water supply and sprinkler systems

Pressure boosting or supporting equipment
