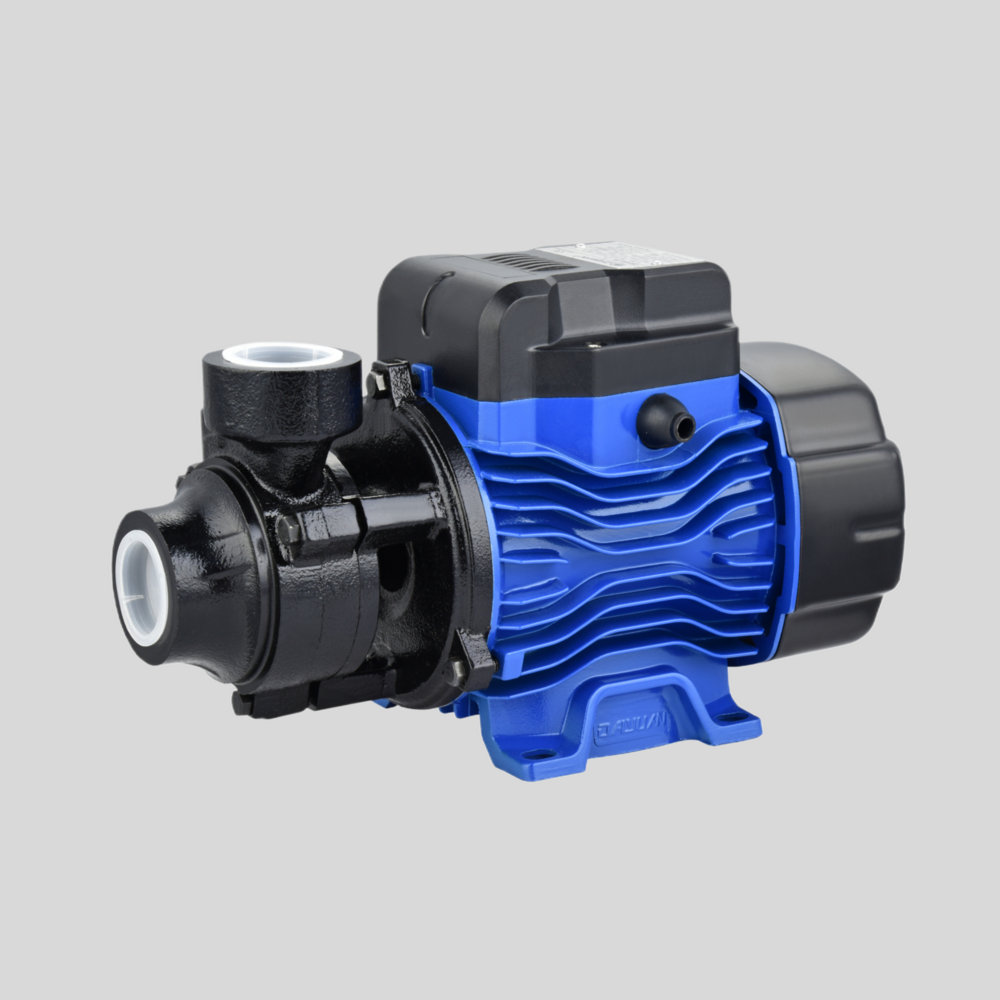

DKm-B-DSK1 Micro Vortex Pump with pressure control

Application

• Small living water supply
• Automatic water sprinkler system
• Small air conditioner system or supporting equipment
• Transfer clean water or other liquids similar in physical and chemical properties

Pump

• Cast iron pump body
• Brass impeller
• AISI 304 shaft
• Max. liquid temperature: +60°C
• Max. suction: +8m

Motor

• Motor with copper winding
• Built-in thermal protector for single phase motor
• Insulation class: F
• Protection class: IPX4
• Max. ambient temperature: +40°C
